3.5" SAS/SATA Hard Drives & Trays

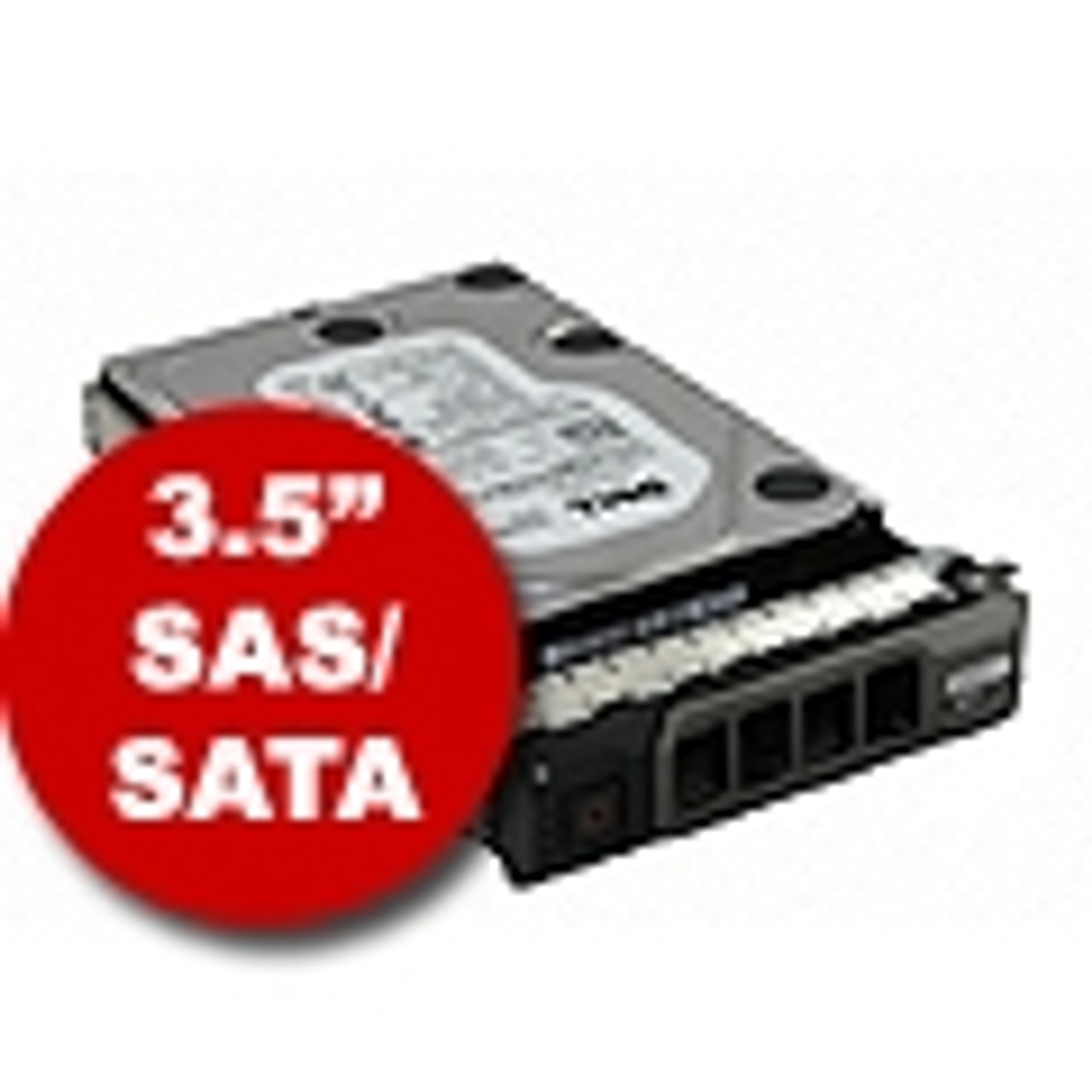

Dell PowerEdge R420 3.5" Hard Drives & Trays
The Dell PowerEdge R420 large form factor (LFF) chassis will hold up to four (4) 3.5" SAS or SATA hard drives in hot-swap trays or cabled to the system board.
All hard drives are genuine Dell OEM, tested and pulled from working servers. 6Gb/s hard drives are shipped mounted in hot-swap trays for the Dell PowerEdge R420 server. These trays can be removed when installing in a cabled chassis. Hard drives are wiped of previous data using the latest DOD standards and are backed by our 90-day parts replacement warranty.
Click a Dell SKU below for more information, pricing and availability. Be sure to choose the correct size, capacity and speed for your machine.
Looking for 2.5" hard drives? See our Dell PowerEdge R420 2.5" SAS/SATA hard drives.
| 3.5" SAS Hard Drives | ||||||
|
|
||||||
|
3Gb/s SAS Hard Drives 3Gb/s SAS hard drives are available in capacities from 73GB up to 1TB. They are compatible with the PowerEdge R420 but will run at a maximum of 3Gb/s throughput regardless of the controller used. All 3Gb/s drives are mounted in older-style trays. 6Gb/s SAS Hard Drives The PowerEdge R420 is designed to take advantage of faster 6Gb/s SAS hard drives when used with a PERC H310, H710 or H710P RAID controller. 6Gb/s hard drives below come mounted in hot-swap trays for the PowerEdge R420. These trays can be removed if installing in a cabled chassis. Click on a Dell SKU for pricing and more information. |
||||||
| Dell SKU | Capacity | RPM | Speed | OEM | OEM Model | |
| 300GB SAS | ||||||
| F617N | 300GB | 15K | 6Gb/s | Seagate | ST3300657SS | |
| M525M | ||||||
| X150K | 300GB | 15K | 6Gb/s | Hitachi | HUS156030VLS600 | |
| 450GB SAS | ||||||
| D32VD | 450GB | 15K | 6Gb/s | Seagate | ST3450757SS | |
| X163K | ||||||
| R749K | 450GB | 15K | 6Gb/s | Seagate | ST3450857SS | |
| H995N | ||||||
| T857K | 450GB | 15K | 6Gb/s | Hitachi | HUS156045VLS600 | |
| 500GB NL SAS | ||||||
| U717K | 500GB | 7.2K | 6Gb/s | Seagate | ST3500414SS | |
| 600GB SAS | ||||||
| R752K | 600GB | 10K | 6Gb/s | Seagate | ST3600002SS | |
| K054N | ||||||
| J762N | 600GB | 15K | 6Gb/s | Seagate | ST3600057SS | |
| W347K | ||||||
| T873K | 600GB | 15K | 6Gb/s | Seagate | ST3600957SS | |
| 5XTFH | ||||||
| W348K | 600GB | 15K | 6Gb/s | Hitachi | HUS156060VLS600 | |
| 1TB NL SAS | ||||||
| 740YX | 1TB | 7.2K | 6Gb/s | Seagate | ST1000NM0001 | |
| YGG39 | ||||||
| 7KXJR | 1TB | 7.2K | 6Gb/s | Toshiba | MK1001TRKB | |
| FNW88 | 1TB | 7.2K | 6Gb/s | Seagate | ST1000NM0023 | |
| U738K | 1TB | 7.2K | 6Gb/s | Seagate | ST31000424SS | |
| X164K | 1TB | 7.2K | 6Gb/s | Seagate | ST31000425SS | |
| 2TB NL SAS | ||||||
| 1D9NN | 2TB | 7.2K | 6Gb/s | Seagate | ST32000645SS | |
| 1P7DP | 2TB | 7.2K | 6Gb/s | Seagate | ST2000NM0023 | |
| 829T8 | 2TB | 7.2K | 6Gb/s | Toshiba | MG03SCA200 | |
| 37MGT | 2TB | 7.2K | 6Gb/s | WD | WD2001FYYG | |
| 67TMT | 2TB | 7.2K | 6Gb/s | Seagate | ST2000NM0001 | |
| 7RGK3 | ||||||
| R755K | 2TB | 7.2K | 6Gb/s | Seagate | ST32000444SS | |
| W350K | 2TB | 7.2K | 6Gb/s | Seagate | ST32000445SS | |
| WDC07 | 2TB | 7.2K | 6Gb/s | Toshiba | MK2001TRKB | |
| YY34F | 2TB | 7.2K | 6Gb/s | WD | WD2000FYYG | |
| 3TB NL SAS | ||||||
| 55H49 | 3TB | 7.2K | 6Gb/s | Seagate | ST3000NM0023 | |
| 698PM | 3TB | 7.2K | 6Gb/s | Seagate | ST33000652SS | |
| 91K8T | 3TB | 7.2K | 6Gb/s | Seagate | ST33000650SS | |
| CWJ92 | 3TB | 7.2K | 6Gb/s | Hitachi | HUS723030ALS640 | |
| DPTW9 | 3TB | 7.2K | 6Gb/s | WD | WD3001FYYG | |
| 4TB NL SAS | ||||||
| 529FG | 4TB | 7.2K | 6Gb/s | Seagate | ST4000NM0023 | |
| 202V7 | 4TB | 7.2K | 6Gb/s | WD | WD4001FYYG | |
| 3.5" SATA Hard Drives | ||||||
 |
Dell SKU | Capacity | RPM | Speed | OEM | OEM Model |
| 500GB SATA | ||||||
| C3YJM | 500GB | 7.2K | 6Gb/s | Seagate | ST500NM0011 | |
| 1TB SATA | ||||||
| 2T51W | 1TB | 7.2K | 6Gb/s | Seagate | ST1000NM0011 | |
| D3YV6 | 1TB | 7.2K | 6Gb/s | Toshiba | MG03ACA100 | |
| T4XNN | 1TB | 7.2K | 6Gb/s | Seagate | ST1000NM0033 | |
| 2TB SATA | ||||||
| 835R9 | 2TB | 7.2K | 6Gb/s | Seagate | ST2000NM0011 | |
| 2G4HM | 2TB | 7.2K | 6Gb/s | WD | WD2003FYYS | |
| FFN1M | 2TB | 7.2K | 6Gb/s | Hitachi | HUA723020ALA640 | |
| NRG1W | 2TB | 7.2K | 6Gb/s | WD | WD2000FYYX | |
| 3TB SATA | ||||||
| HHD4K | 3TB | 7.2K | 6Gb/s | Seagate | ST3000DM001 | |
| JMN63 | 3TB | 7.2K | 6Gb/s | Seagate | ST33000650NS | |
| 4TB SATA | ||||||
| HNVFP | 4TB | 7.2K | 6Gb/s | Hitachi | HUS724040ALE640 | |
| GCHH1 | 4TB | 7.2K | 6Gb/s | Hitachi | HUS724040ALA640 | |
