Intel Xeon CPUs E5-2600 Series (Sandy Bridge-EP)

Intel Xeon CPUs E5-2600 Series (Sandy Bridge-EP)

Intel Xeon E5-2600 Series CPUs (Sandy Bridge-EP)

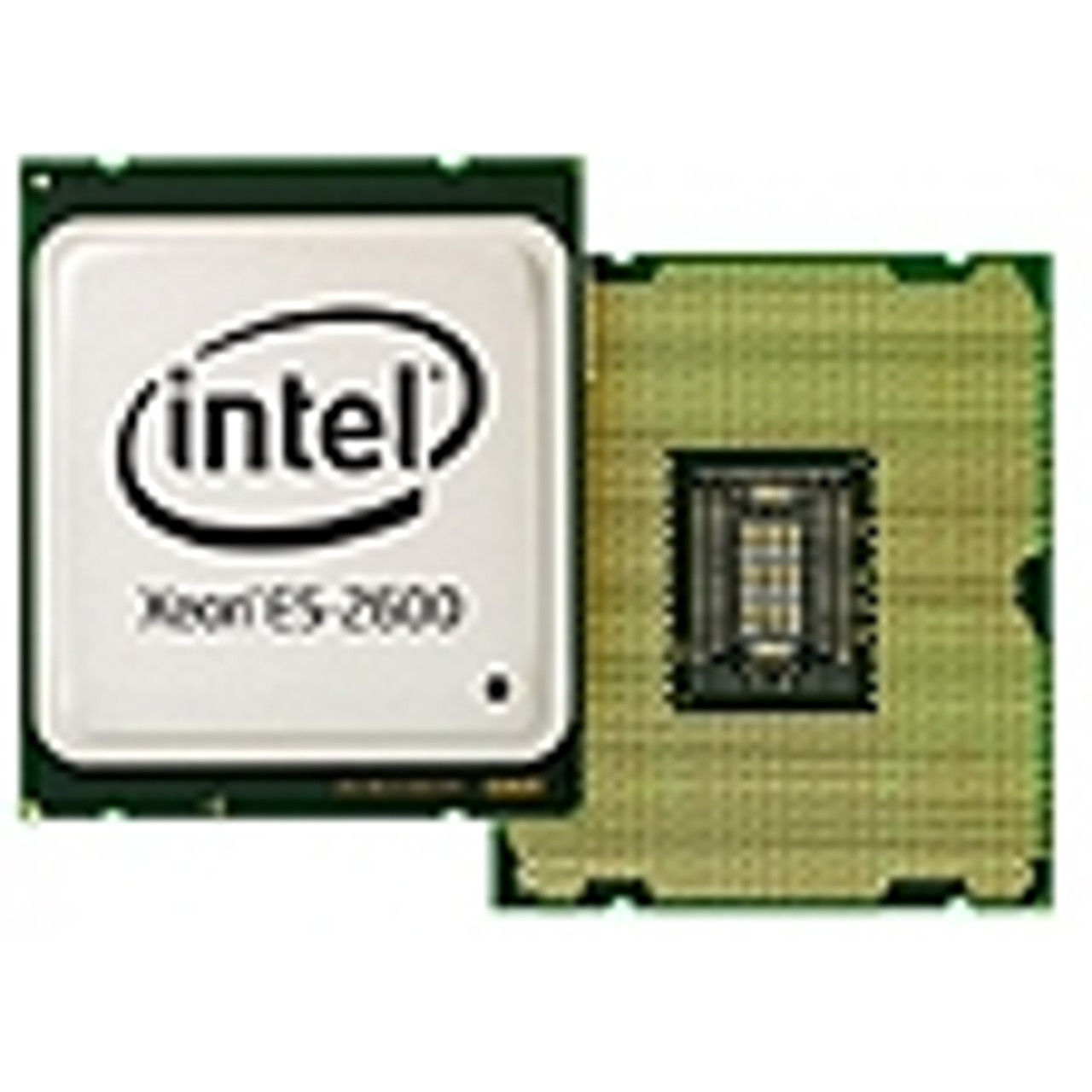

Intel Xeon E5-2600 Series Processors

The explosive growth of unstructured data puts new demands on network and storage infrastructure and challenges your ability to deliver services such as cloud computing. IT needs to respond rapidly to new and changing business demands, scale quickly and appropriately to fluctuating workloads, accommodate business expansions, and protect your data from cybercriminals—all while keeping costs down.



The new Intel Xeon E5-2600 Sandy Bridge-EP processor product family is at the heart of an agile, efficient data center that meets your diverse needs. Now you can deploy a more secure private cloud, quickly crunch through big data, and get the most out of your data center with greater energy efficiency.

Space and power consumption represent the two biggest concerns for data centers—both yours and those managed by your public cloud provider. By combining Intel Xeon E5-2600 processor product family–based servers with other energy-efficient data technologies, you can increase data center efficiency, cut power bills and energy consumption, and reduce space needs.

Compared to the previous generation, the new Intel Xeon E5-2600 processors deliver:

  • Up to 50 percent more performance
  • Up to 45 percent greater Java performance
  • Up to 45 percent improvement in energy efficiency

Selective processors in the Intel Xeon E5-2600 series also support Turbo Mode. Turbo Mode is an OS-controlled operation that automatically allows the processor to run faster than the marked frequency if the processor is operating below power, temperature, and current limits.

The Dell PowerEdge R720xd model will take up to two (2) processors. When adding a second processor to an existing server, the Intel sSpec number must match the first CPU.

Unless otherwise noted, processors have been tested and removed from working servers and are backed by our 90-day parts replacement warranty. Heatsinks are sold separately.

Click a processor below for more information, availability and pricing.

Intel Xeon E5-2600 Series Processors (Sandy Bridge-EP)
Model
number
Intel sSpec
number

Frequency

(GHz)

Turbo Cores

L2
cache

(per core)

L3
cache
(QPI) TDP
Dual Core
Xeon E5-2637
  • SR0LE
3.00 GHz Yes 2 256 KB 5 MB 8.0 GT/s 80 W
Quad Core
Xeon E5-2603
  • SR0LB
1.80 GHz No 4 256 KB 10 MB 6.4 GT/s 80 W
Xeon E5-2609 SR0LA 2.40 GHz No 4 256 KB 10 MB 6.4 GT/s 80 W
Xeon E5-2643
  • SR0L7
3.33 GHz Yes 4 256 KB 10 MB 8.0 GT/s 130 W
Six Core
Xeon E5-2620 2.00 GHz Yes 6 256 KB 15 MB 7.2 GT/s 95 W
SR0H7
Xeon E5-2630
  • SR0KV
2.30 GHz Yes 6 256 KB 15 MB 7.2 GT/s 95 W
SR0H6
Xeon E5-2640 SR0KR 2.50 GHz Yes 6 256 KB 15 MB 7.2 GT/s 95 W
SR0H5
Xeon E5-2667 SR0KP 2.90 GHz Yes 6 256 KB 15 MB 8.0 GT/s 130 W
SR0H3
Six Core, low power
Xeon E5-2630L
  • SR0KM
2.00 GHz Yes 6 256 KB 15 MB 7.2 GT/s 60 W
SR0H1
Eight Core
Xeon E5-2650
  • SR0KQ
2.00 GHz Yes 8 256 KB 20 MB 8.0 GT/s 95 W
SR0H4
Xeon E5-2660
  • SR0KK
2.20 GHz Yes 8 256 KB 20 MB 8.0 GT/s 95 W
SR0GZ
Xeon E5-2665 SR0L1 2.40 GHz Yes 8 256 KB 20 MB 8.0 GT/s 115 W
SR0HB
Xeon E5-2670 SR0KX 2.60 GHz Yes 8 256 KB 20 MB 8.0 GT/s 115 W
SR0H8
Xeon E5-2680 SR0KH 2.70 GHz Yes 8 256 KB 20 MB 8.0 GT/s 130 W
SR0GY
Xeon E5-2690 SR0L0 2.90 GHz Yes 8 256 KB 20 MB 8.0 GT/s 135 W
SR0HA
Eight Core, low power
Xeon E5-2650L
  • SR0KL
1.8 GHz Yes 8 256 KB 20 MB 8.0 GT/s 70 W
SR0H0
