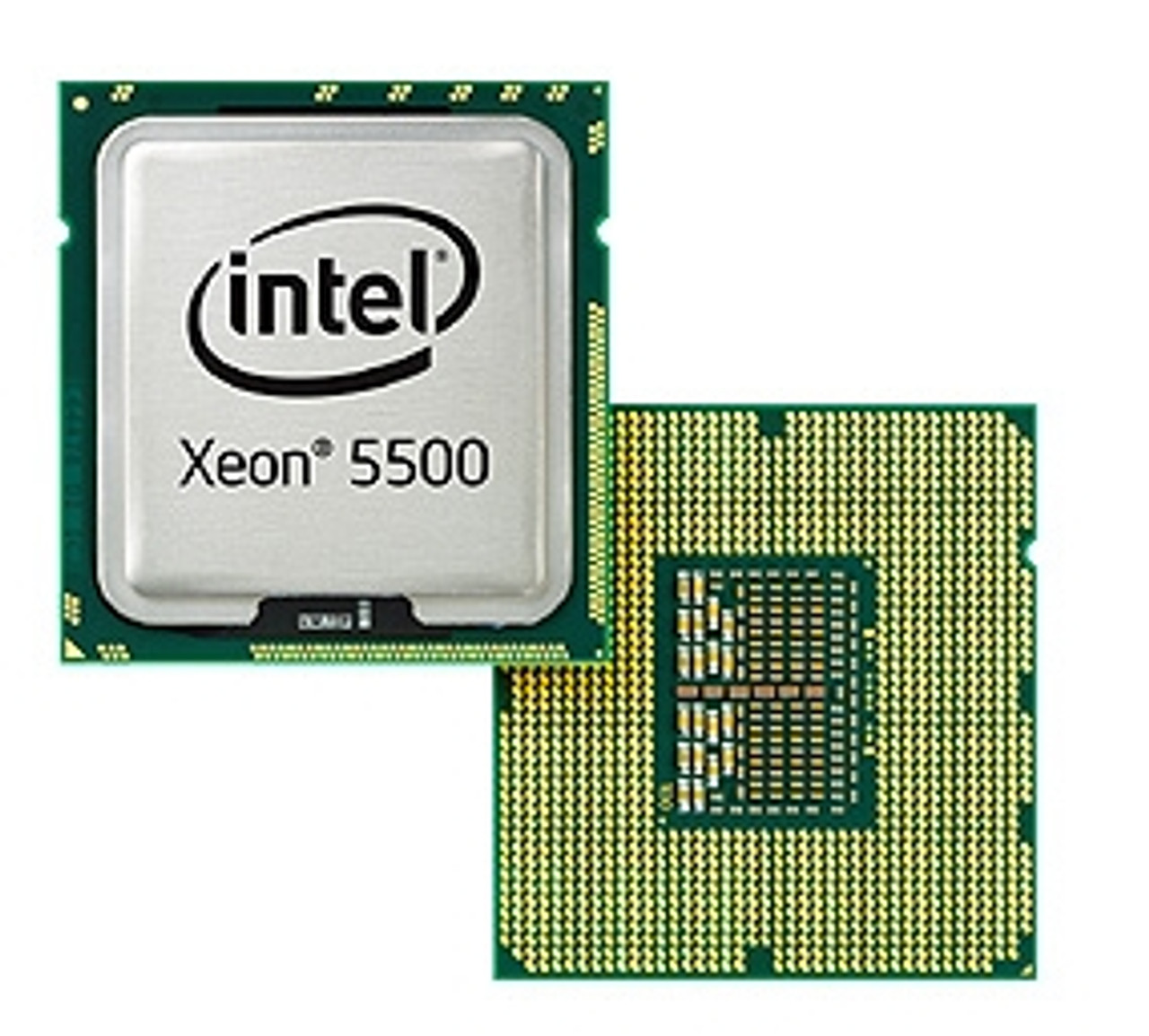

Intel Xeon 5500 Gainestown CPUs
Dell PowerEdge R410 Intel Xeon 5500 Series Processors (CPUs)
The Dell PowerEdge R410 server will accept up to two (2) Intel Xeon 5500 series processors.
Designed for industry-leading performance and maximum energy efficiency, the Intel Xeon processor 5500 sequence delivers versatile one-way and two-way 64-bit multi-core servers and workstations that are ideally suited for a wide range of infrastructure, cloud, high-density, and high-performance computing (HPC) applications.
The Intel Xeon processor 5500 series offers up to nine times faster performance over single-core servers. It automatically places CPUs and memory into an optimal power state for maximum performance, while reducing energy use over single-core servers. Users can also mix different generations of Intel Xeon processors within the same pool, achieving a 9:1 server consolidation ratio, while reducing operating costs up to 90 percent, resulting in an estimated eight month ROI.
Selective processors in the Intel Xeon 5500 series also support Turbo Mode. Turbo Mode is an OS-controlled operation that automatically allows the processor to run faster than the marked frequency if the processor is operating below power, temperature, and current limits.
Unless otherwise noted, processors have been tested and removed from working servers and are backed by our 90-day parts replacement warranty. Heatsinks are sold separately.
Click a processor below for more information, availability and pricing.
| Intel Xeon 5500 Series Processors (Gainestown) | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model number | Intel sSpec number |
Frequency (GHz) | Turbo | Cores |
L2 (per core) | L3 cache | (QPI) | TDP |
| Dual Core | ||||||||
| Xeon E5502 | 1.87 GHz | No | 2 | 256 KB | 4 MB | 4.8 GT/s | 80 W | |
| Xeon E5503 | 2.0 GHz | No | 2 | 256 KB | 4 MB | 4.8 GT/s | 80 W | |
| Dual Core, low power | ||||||||
| Xeon L5508 | 2.0 GHz | Yes | 2 | 256 KB | 4 MB | 4.8 GT/s | 38 W | |
| Quad Core | ||||||||
| Xeon E5504 | 2.0 GHz | No | 4 | 256 KB | 4 MB | 4.8 GT/s | 80 W | |
| Xeon E5506 | 2.13 GHz | No | 4 | 256 KB | 4 MB | 4.8 GT/s | 80 W | |
| Xeon E5507 | SLBKC | 2.27 GHz | No | 4 | 256 KB | 4 MB | 4.8 GT/s | 80 W |
| Xeon E5520 | SLBFD | 2.27 GHz | Yes | 4 | 256 KB | 8 MB | 5.86 GT/s | 80 W |
| Xeon E5530 | SLBF7 | 2.4 GHz | Yes | 4 | 256 KB | 8 MB | 5.86 GT/s | 80 W |
| Xeon E5540 | SLBF6 | 2.53 GHz | Yes | 4 | 256 KB | 8 MB | 5.86 GT/s | 80 W |
| Xeon X5550 | SLBF5 | 2.67 GHz | Yes | 4 | 256 KB | 8 MB | 6.4 GT/s | 95 W |
| Xeon X5560 | SLBF4 | 2.8 GHz | Yes | 4 | 256 KB | 8 MB | 6.4 GT/s | 95 W |
| Xeon X5570 | SLBF3 | 2.93 GHz | Yes | 4 | 256 KB | 8 MB | 6.4 GT/s | 95 W |
| Quad Core, low power | ||||||||
| Xeon L5506 | 2.13 GHz | No | 4 | 256 KB | 4 MB | 4.8 GT/s | 60 W | |
| Xeon L5518 | 2.13 GHz | Yes | 4 | 256 KB | 8 MB | 5.86 GT/s | 60 W | |
| Xeon L5520 | 2.27 GHz | Yes | 4 | 256 KB | 8 MB | 5.86 GT/s | 60 W | |
| Xeon L5530 | 2.4 GHz | Yes | 4 | 256 KB | 8 MB | 5.86 GT/s | 60 W | |
